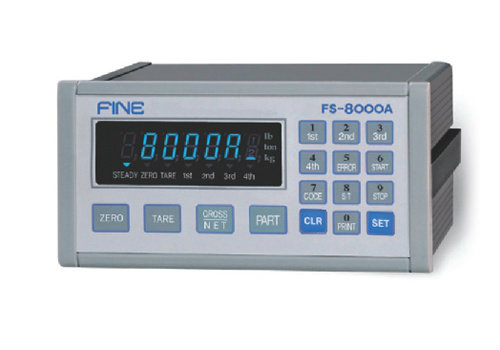

High Speed and accurate weighing indicator. (Made In Korea)

Product Description

Description :
Heavy duty , Reliable and high speed reading digital Indicator ( made in Korea )

Specifications :


Analog Input & A/D ConversionInput Sensitivity            0.2 mv/d
Zero adjustment Range  -4 mV/V min  42m V/V max
Load cell excitation DC 10V (15V/AC)
Max Input voltage  up to32mV
Temperature Coefficient -10 degree -40 degree
A/D Converter  130,000 Count
Non-Linearity 0.005% H F.S

Digital Section
Max.Display   20,000 counts
Min.Division x1, x2, x5, x10, x20, x50
Display Unit  7-Segment, 7digit Highly bright fluorescent tube

General
Power   AC110 / 220V (+/-10%) , 50 / 60Hz, 10VA
Product Weight Net 2.3kg Box 3.3kg
Operating Temperature -10 degree / +40 degree
Operating Humidity 85% RH Max (Non-Condensing)
Physical Dimensions 193.6 x 98 x 166 (mm)

Options :

OP-01 Standard
OP-02  Serial I/F : Current Loop
OP-03 Parallel I/F : BCD-Out
OP-04  Serial I/F : RS422, RS485
OP-05  Analog Output : (0-10V / 10V-0V)
OP-06  Analog Output : (4-20mA / 20-4mA)
OP-07 Print I/F : Centronics Parallel
